Description

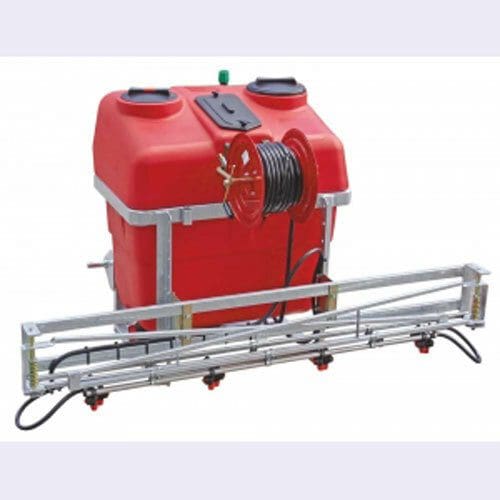

The Pasturepak series 800 litre Linkage sprayer with 6m Field boom, hose reel and spray gun, and BP 75/15 diaphragm pump, 71L/min. Unit is part of the Super series with low profile tank, external sightline with floating ball and 15L fresh water tank and 4L toolbox. Adjustable Cat I & II hitch system to suit a wide range of TPL mounting points. New vertical boom channel for positioning the boom at the optimum height.
Application
Linkage
Key Features
- Pump: Silvan self-priming oil-backed diaphragm type with nitrile diaphragms and corrosion resistant, cast anodised aluminium body.
- BP75/15: 71 L/min. capacity 1500kPa pressure
- Boom: Field boom: 6m with stainless steel spray lines, non-drip nozzle holders, fully galvanised frame and spring loaded safety break back/forward.
- Nozzles: Air induction nozzles with strainer in bayonet fit non-drip nozzle holders at 50cm spacings.
- Controls: 3 outlet manual control valve with pressure regulator. Mounted forward for easy access.
- Tank: Low profile, 800 litre polytuff impact resistant polyethylene construction, external sightline with floating ball and non-spill offset
screw-down lid with single breather. 15 litre fresh water tank with closed lid and easy to handle on/off tap. 4 litre toolbox with polyethylene lid - Frame: Fully galvanised steel, cat I & II linkage.
- Agitation: Bypass agitation.
- Pressure Gauge: 1 x glycerine filled gauge.
- Filtration: Lid strainer, suction line strainer (with stop valve fitted at side of tank to enable ease of filter maintenance), and nozzle cup strainers.
- Hose Reel: Fitted with rear-mounted hosereel, including 20m of 12mm I.D quality pressure hose and Silvan Triam 44 spraygun with convenient trigger action and
spray pattern adjustment. - PTO Driveshaft: Quality Bondioli & Pavesi driveshaft with quick release pins & safety cover.
Specifications
- Trailed/Linked: Linkage
- Tank Size 800.00 litres
- Pump Size: 71.00 L/min
- Pressure Rate: 15.00 bar
- Height/Width/Depth: 1,315mm / 2,067mm / 1,460mm
- Product Weight: 210.00 KG
